Complete system · BT ProGuard Load Bars

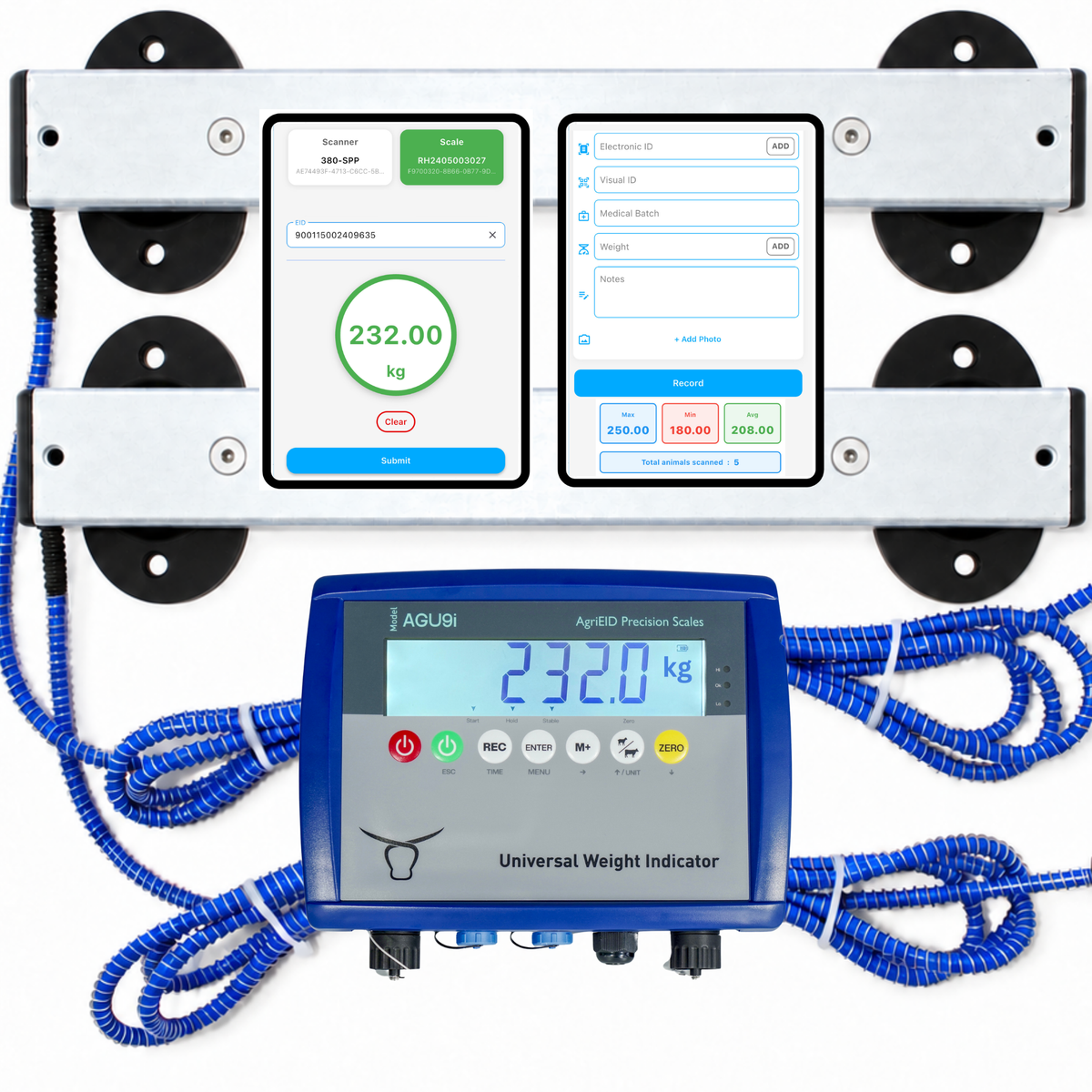

Bluetooth cattle scales BT ProGuard Load Bars
Fully sealed, hot-dip galvanised 600mm load bars rated to 3 tonnes. Bluetooth to your phone, or plug straight into your existing TruTest or Gallagher indicator with no calibration.
AUD · GST included. Shipping calculated at checkout. Save $1,000 in the Spring Sale

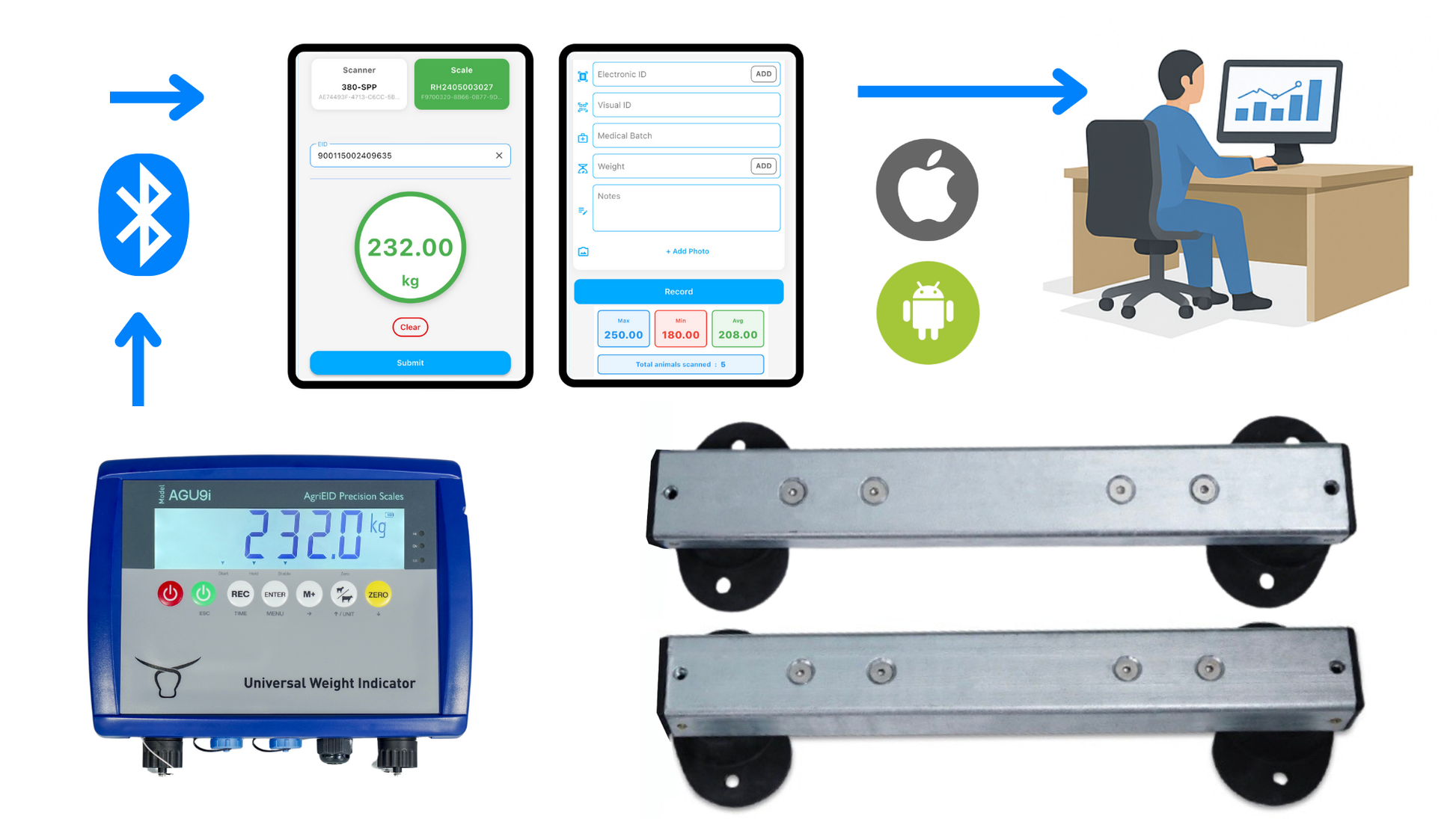

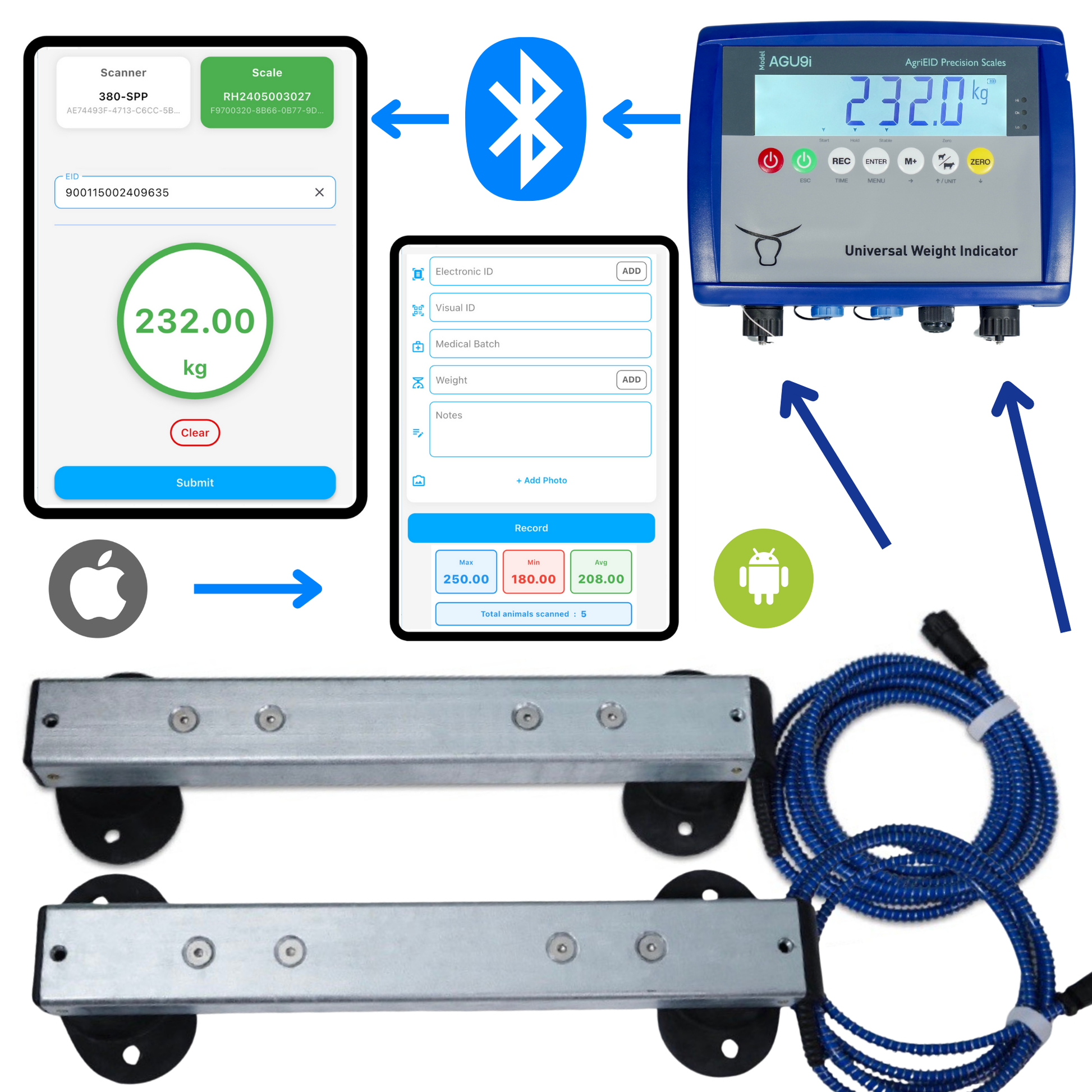

The bars capture the weight. The indicator sends it. The app records it. The cloud tracks the gain.
Fully sealed, hot-dip galvanised 600mm load bars for any yard, wet or coastal. Pre-calibrated for the AgriEID BT indicator and for TruTest and Gallagher indicators.
01 / Load bars

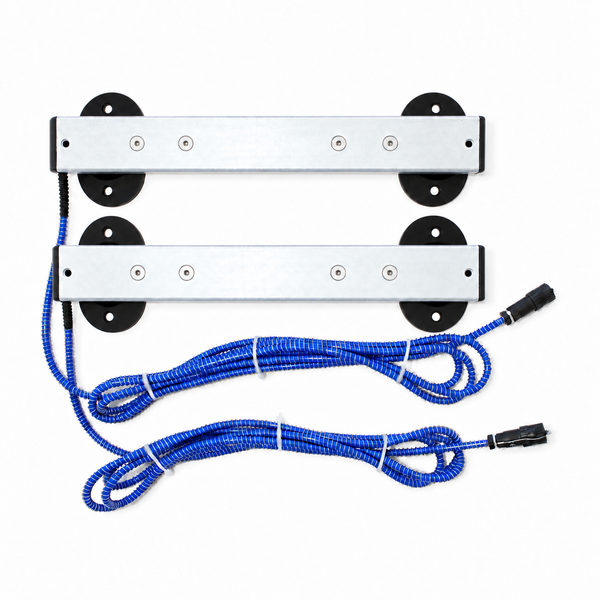

2 x 600mm sealed, hot-dip galvanised bars rated to 3,000 kg and IP66, each with a long-type aircraft-grade aluminium load cell.
02 / Bluetooth indicator
Detects the bars and calibrates itself. Auto-hold locks the weight of a restless animal and sends it to your phone.
03 / AgriEID Lite app
Free on Apple and Android. Save each weight against a visual or EID tag, with treatments and notes.

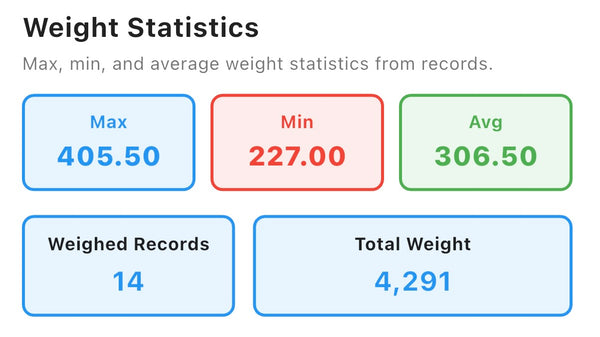

04 / AgriEID Cloud
12 months included. Weight gain and growth charts for every animal, or export each session as a CSV.
Also in the box: 2 x 5m 4-wire PVC+PUR cables with a stainless steel spring cover (protected from sunlight, oil, cold, rolling and rodents), a 6V rechargeable battery, a 240V adapter and a platform build guide. The load bars only option is the two bars and their cables, for an indicator you already own. Phone, tablet and weighing platform not included (BYOD).
Full details and specifications →Four steps at the crush. No calibration, and the indicator streams every weight to your phone.

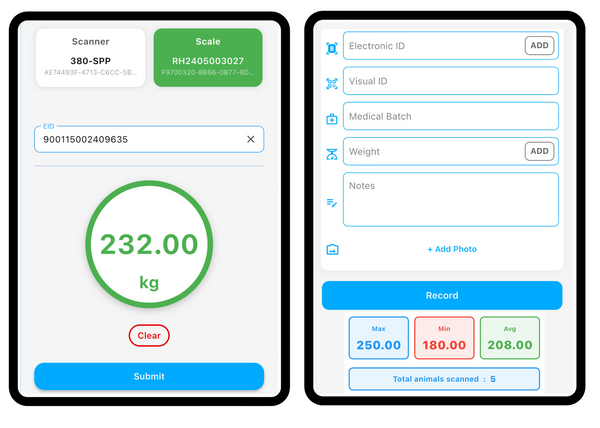

The Bluetooth indicator streams each weight reading straight to your own phone or tablet, free with the AgriEID Lite app. Record notes by voice, work with no reception, then upload to the cloud with one button.
Choose the right cattle scales for your yards
Same indicator, same apps, same cloud software. The bars change with your yards.
BT Ultra Load Bars
Aircraft-grade aluminium load cells in a powder-coated carbon steel, double-deck design. Bluetooth to your phone and a self-calibrating indicator. Built for under-cover yards.
BT ProGuard Load Bars
Sealed galvanised housing with Bluetooth BT indicator. Rugged, reliable and built to last in the toughest crush environments.
Showing: 600mm Complete System
5T Extreme Duty Load Bars
For the biggest operations. 5-tonne capacity with unibody galvanised construction. Fits under any cattle crush.
Showing: 1000mm Complete System
Add the BT Ultra Stick Reader to any of them and it becomes a Digital Farm System package, for less than buying the two separately. Add the reader and save.

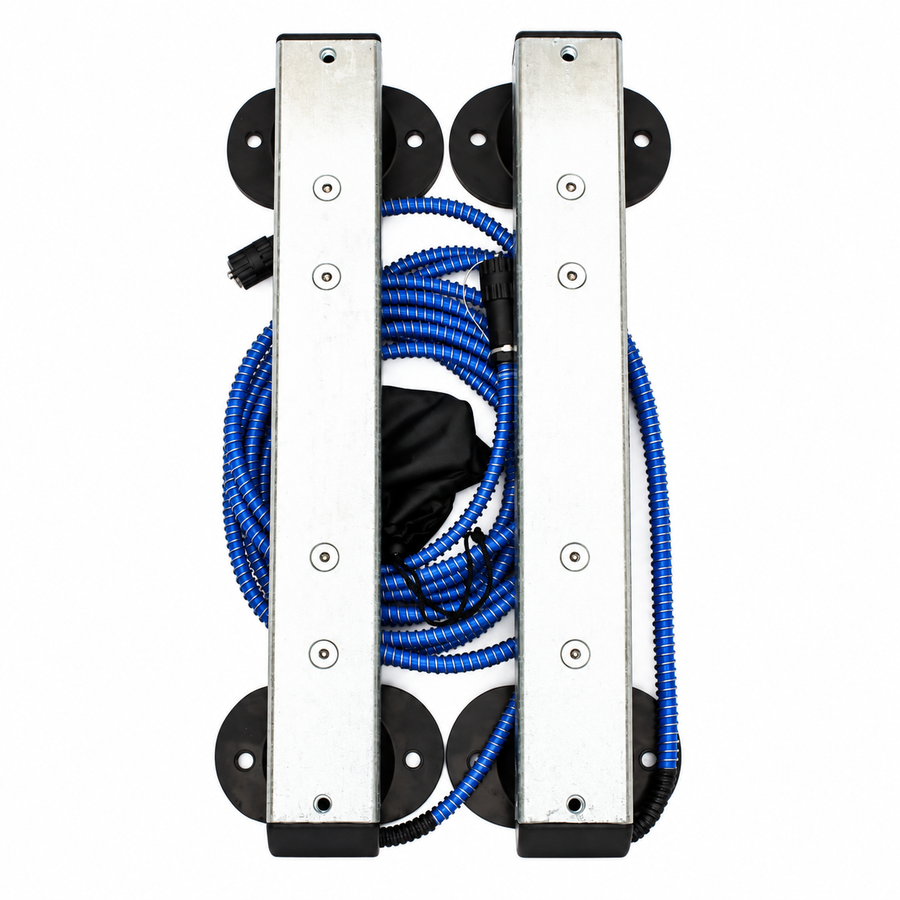

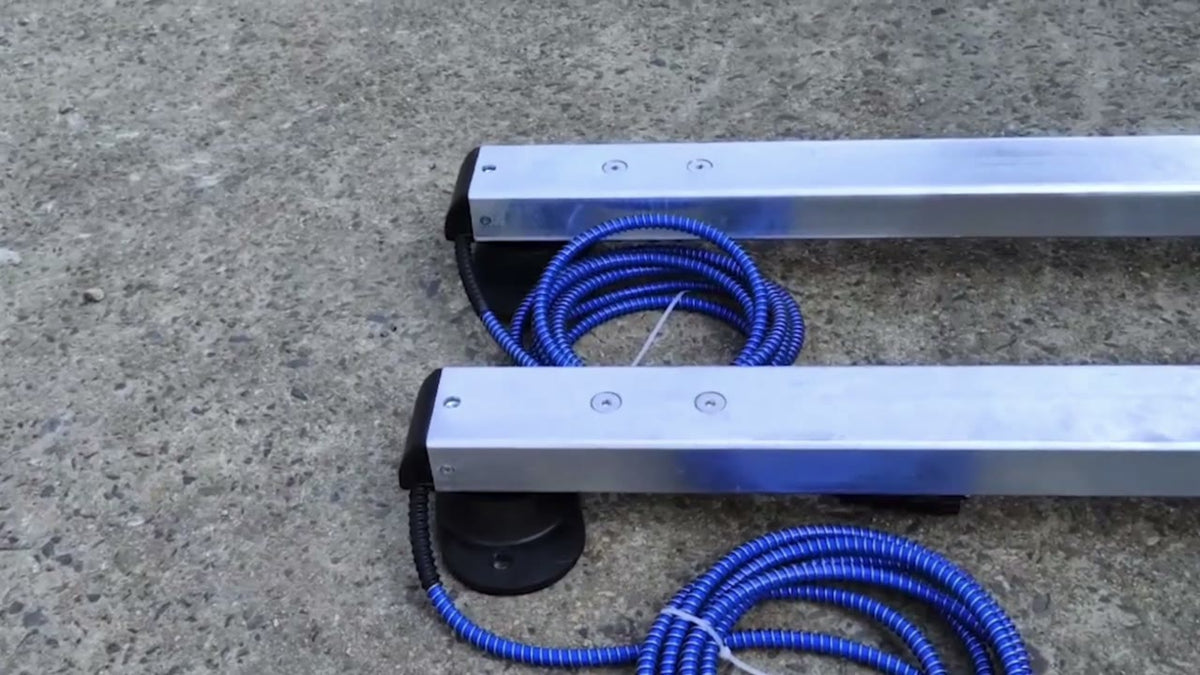

Rain, manure, mud and rodents. None of it gets in.
A tubular, rubber-sealed housing protects the aircraft-grade aluminium load cells from everything a crush throws at them. Hot-dip galvanised for coastal and high-humidity properties. The 5m 4-wire PVC+PUR cables run inside a stainless steel spring cover, protected from sunlight, oil, cold, rolling and rodents, so they can be left outside.
IP66 sealed bars
Rubber-sealed tubular housing keeps out rain, soil and manure.
Aluminium load cells
Two long-type aircraft-grade aluminium double shear beams, IP67.
Hot-dip galvanised
For coastal, tropical and high-humidity properties.
Rodent-proof cables
5m 4-wire PVC+PUR cable in a stainless steel spring cover, with quick-release connectors. Protected from sunlight, oil, cold, rolling and rodents.
30% lighter than Ultra
16 kg against 23 kg, so it moves easily between weighing sites.
3,000 kg capacity

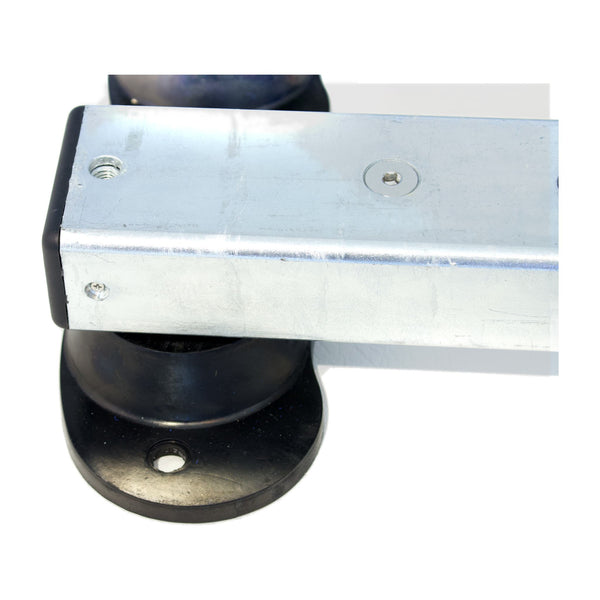

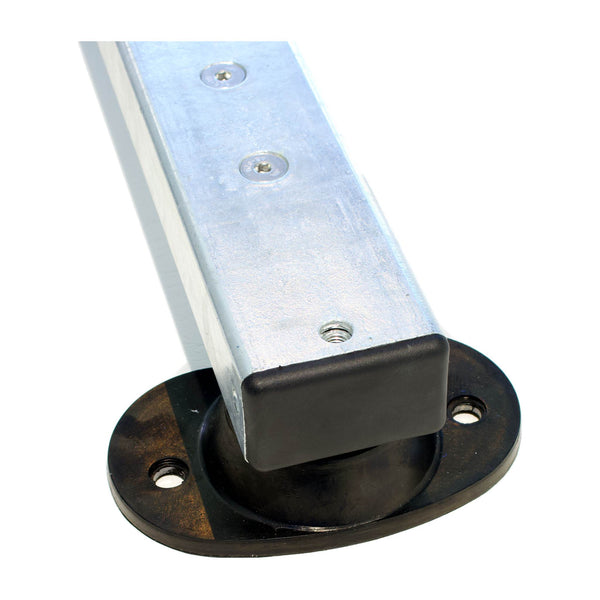

Rubber-mounted fixing plates absorb impact. Fit temporarily or permanently.
Works with the indicator you already have.
ProGuard bars are pre-calibrated and plug into TruTest and Gallagher indicators as well as the AgriEID BT indicator. Going the other way, the BT indicator auto-detects TruTest, Gallagher and AgriEID bars. Upgrade one half now and the other later.
Crushes vary. A platform build guide is included so a local welder can make one that sits flush.
Weights land on your phone. Weight gain lands in the cloud.
Sell in the right weight band and the gear pays for itself in a season.
Producers weighing and drafting with AgriEID report a 10–15% lift in annual income from better sale timing, accurate dosing and earlier culling. On a 50-breeder operation that is $5,000–$12,000 a year.
Run the ROI calculatorCattle scales specifications
- Capacity
- 3,000 kg
- Dimensions
- 600 × 80 × 95mm (L × W × H)
- Platform fixing centres
- 560mm
- Net weight
- 16 kg
- Division
- 0.1 kg
- Accuracy
- ±1% F.S. or 2 divisions
- Material
- Carbon steel, hot-dip galvanised
- Structure
- Tubular sealed housing, IP66
- Load cells
- 2 × long-type aircraft-grade aluminium double shear beam, 1,500 kg each, IP67
- Cables
- 2 × 5m 4-wire PVC+PUR cables with a stainless steel spring cover: protected from sunlight, oil, cold, rolling and rodents. Quick-release stainless steel connectors with weather caps
- Indicator
- BT Bluetooth, auto-detect, self-calibrating, IP67 housing, 30-hour battery
- Power
- 6V rechargeable battery or 240V adapter
- Operating temperature
- -10 to +40°C
- Suits
- Under a platform, alleyway, crate or woolpress
- Warranty
- 3 years bumper-to-bumper
In the box

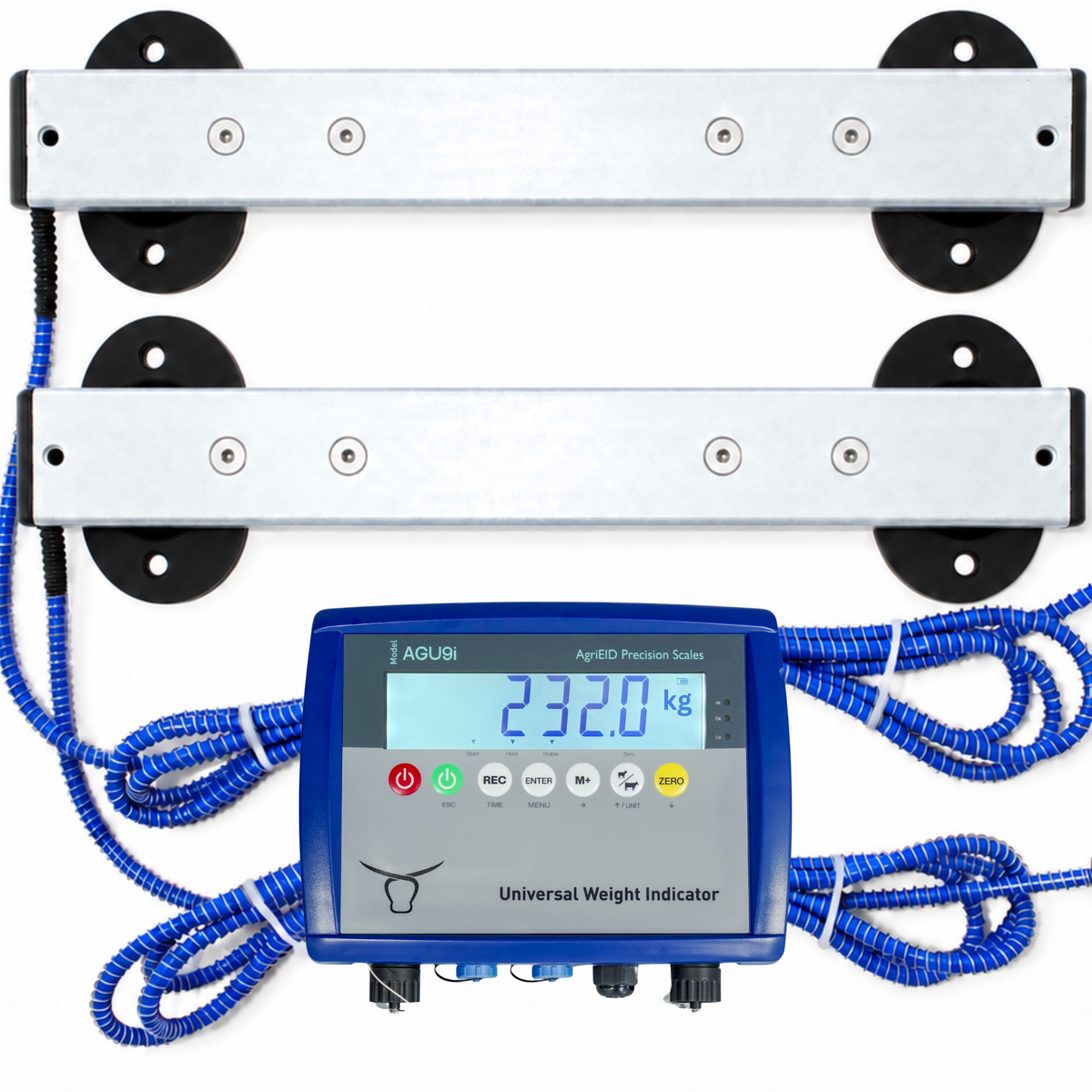

2 × ProGuard 600mm sealed load bars · BT auto-detect indicator with high-resolution display · 6V rechargeable battery and 240V adapter · 2 × 5m rodent-proof cables with stainless quick-release connectors and weather caps · platform build guide.
Questions before you order
The 600mm bars go under a weighing platform, including a platform inside a crush, and fix through four mounting holes in each base plate. They are not designed to be mounted under the crush itself: for that, choose the 5T Extreme Duty load bars. A platform construction guide is included. Platform fixing centres are 560mm.
No. The bars are pre-calibrated and the BT indicator auto-detects them. They also plug into TruTest and Gallagher indicators without calibration. They are calibrated before shipping, so only recalibrate if the readings drift, and contact support first.
No. You can identify animals with visual tags or photo ID in the free AgriEID Lite app. Add the BT Ultra Stick Reader later, or buy the Digital Farm System bundle.
AgriEID Lite is free. After the free 12 months the cloud platform starts at US$9.95 a month for up to 100 animals, billed monthly with every module included. Change or cancel at any time and export all your records to CSV. The scales work without a subscription. See pricing.
3-year bumper-to-bumper warranty on the bars and indicator, backed by Australian phone, email and chat support.
Customer reviews
What farmers say about AgriEID
Reviews from producers weighing and tagging with AgriEID gear.
BT ProGuard Load Bars · $1,495
600mm Complete System
