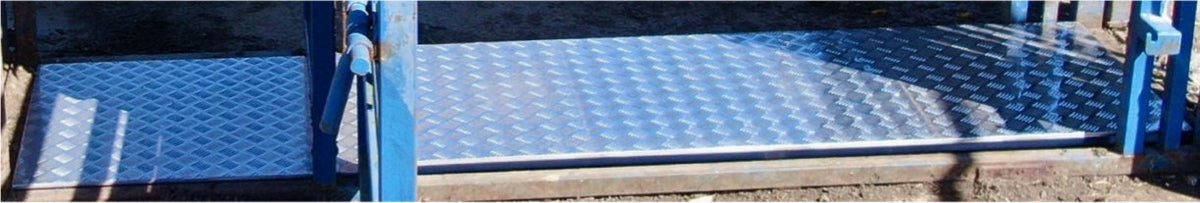

A lightweight aluminium platform for your load bars
The 600mm load bars sit under a weighing platform. This is the platform AgriEID recommends: marine-grade aluminium, low profile, and under 35 kg for a 2000 × 700mm platform, the standard crush size. A local welder or fabricator can build it quickly from this guide. The Extreme 1000mm bars are made to bolt to the steel base under your crush. Download the platform guide (PDF)
50 × 50 × 5mm angle
Marine-grade aluminium angle for the platform edges.
50 × 50 × 5mm RHS square tube
Marine-grade aluminium square tube for the platform spine.
3–6mm tread plate
Aluminium diamond tread plate on top of the frame.
Measuring your crush
Take the measurements for the platform size you need, so it fits comfortably inside your crush.
When you measure the inside of the crush, open and close every access door and look for anything that could get in the way of the platform, the load cells or the load bars.
Allow a 10 to 20mm gap between the edge of the platform and the inside edge of the crush, so there is room to install the platform and to open veterinary doors, kick gates and the head bail.
Building and fitting the platform
The frame is 50mm angle around the edges with a 50mm square tube spine, and 3–6mm diamond tread plate on top.
01 / Add two plates under the frame

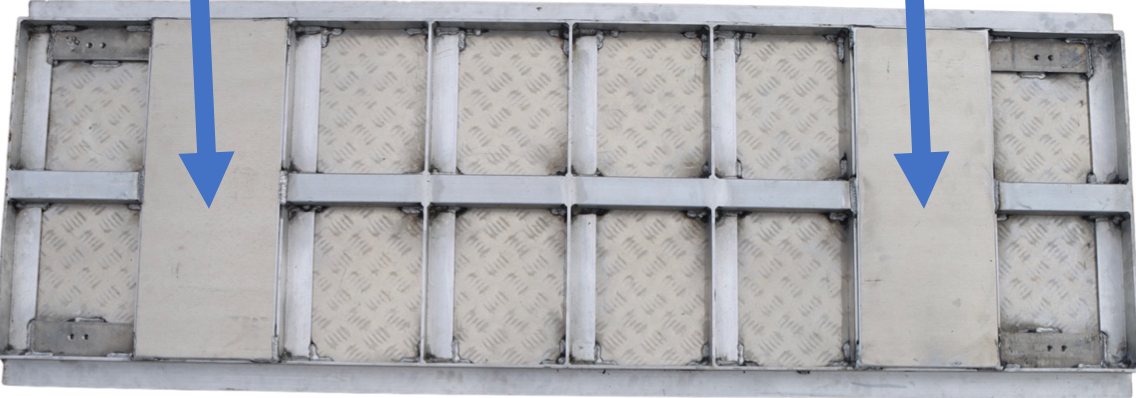

Add two 3–6mm aluminium plates to the underside of the frame, one over each load bar.
02 / Drill the plates

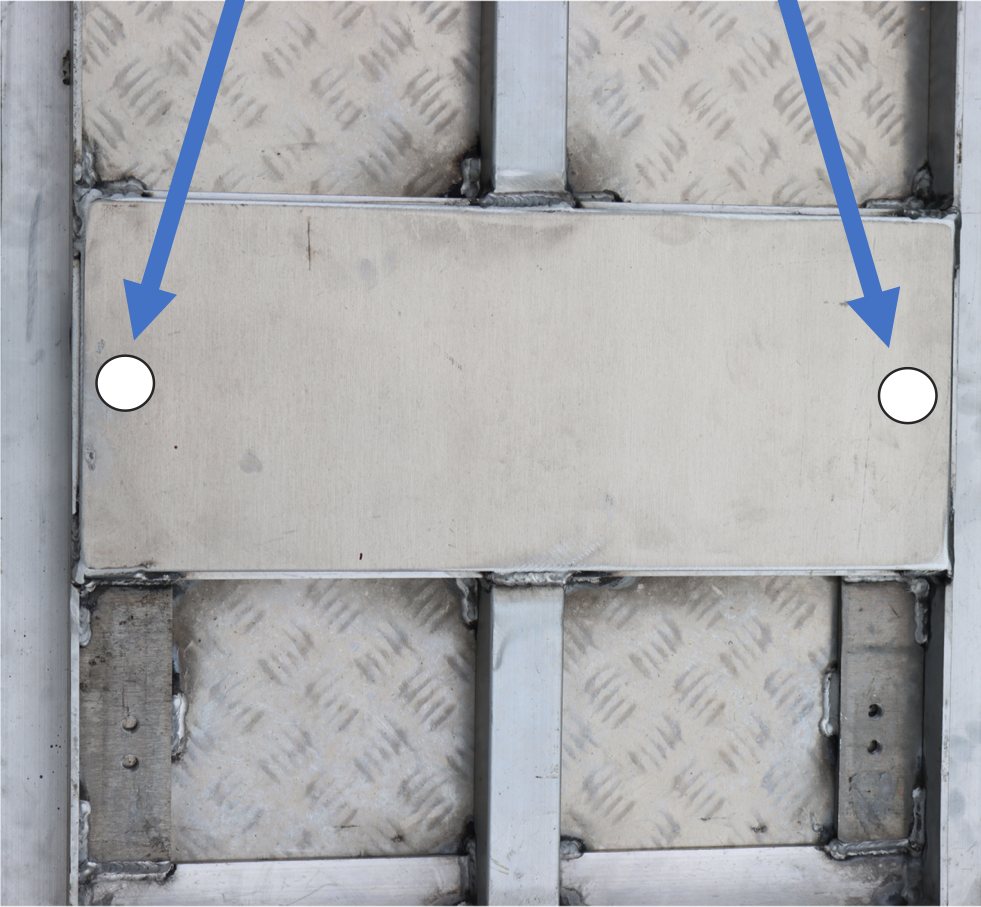

Drill holes into the 6mm plates to secure the platform to the load bars.
03 / Fix the load bars

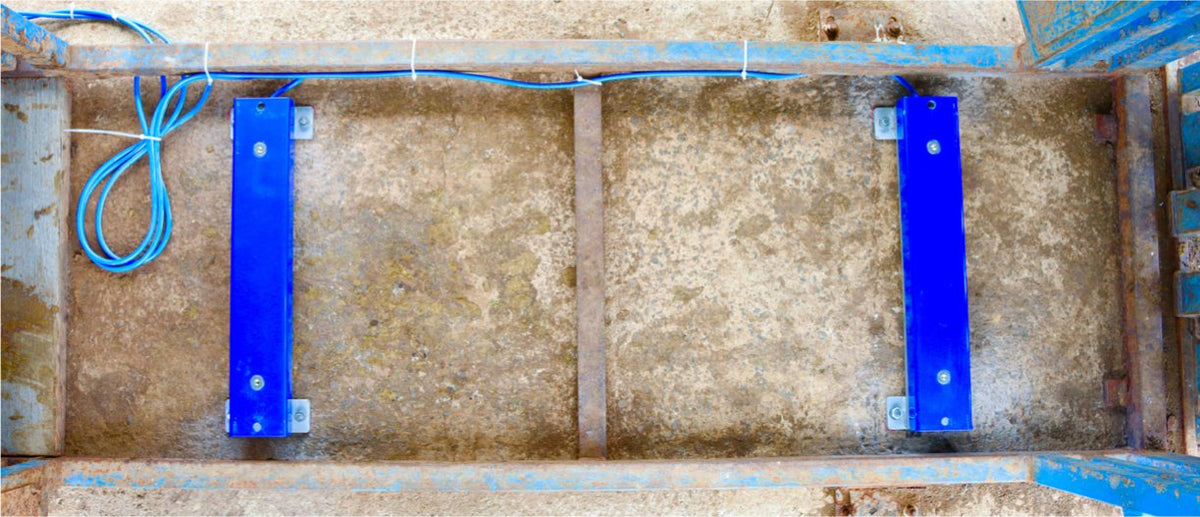

Dynabolt the load bars into a concrete pad before the platform goes on.
04 / Keep a 5mm gap

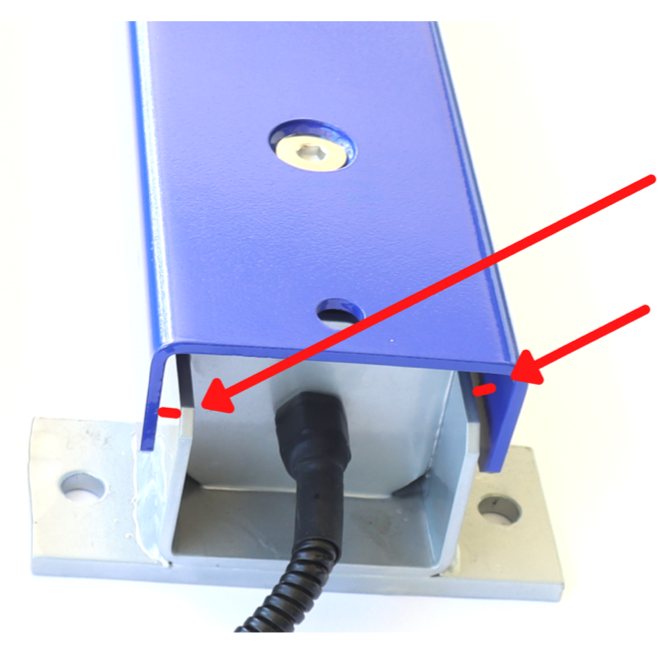

When you attach the platform, make sure the floating top section is not damaged as you tighten the bolts. A gap of at least 5mm must be kept between the floating top section and the main structure for the load bars to work correctly.
05 / Secure the platform

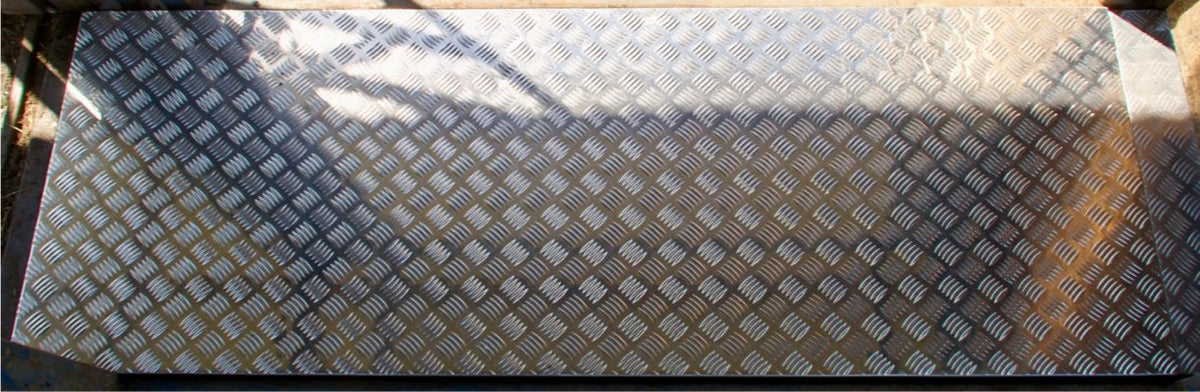

The aluminium platform secured in position.
Alternate design with end channels

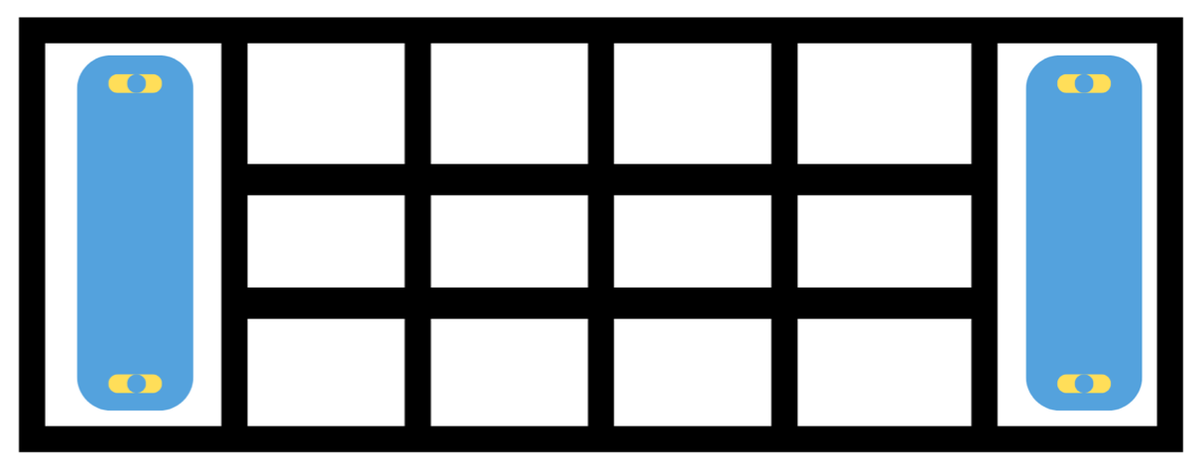

An alternate design with end channels for the load bars. Structural aluminium alloy (for example 6061-T6 or 6082-T6) for the rails and cross members, with 4–5mm checker plate for the deck.
Load bar measurements
Measurements are in millimetres.

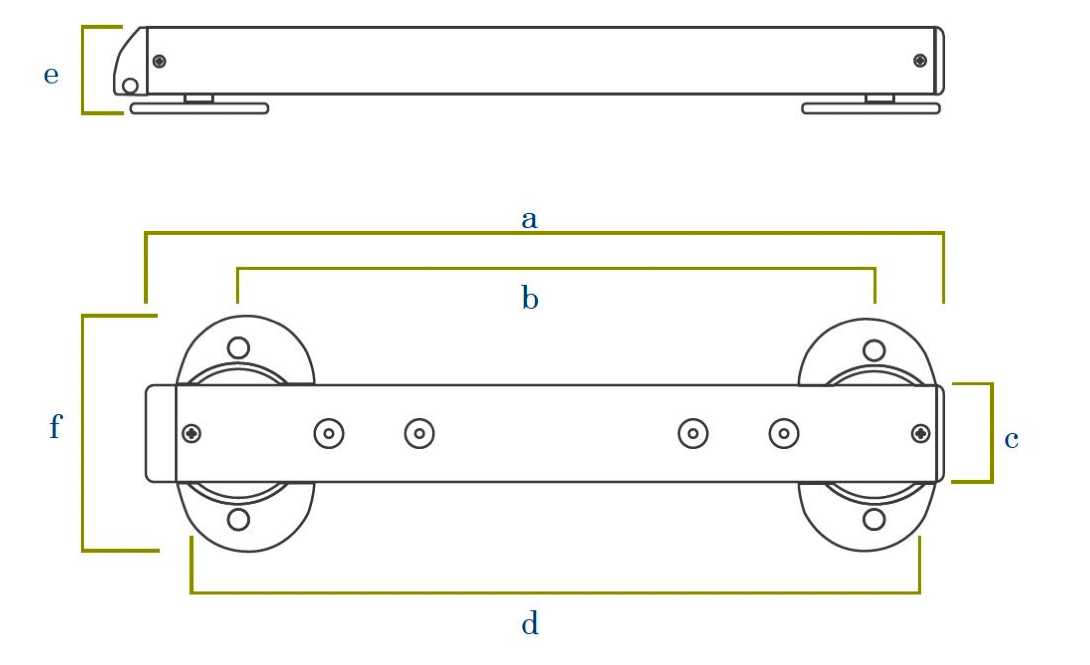

BT ProGuard 600mm
- a
- 600
- b
- 505
- c
- 80
- d
- 590
- e
- 95
- f
- 180

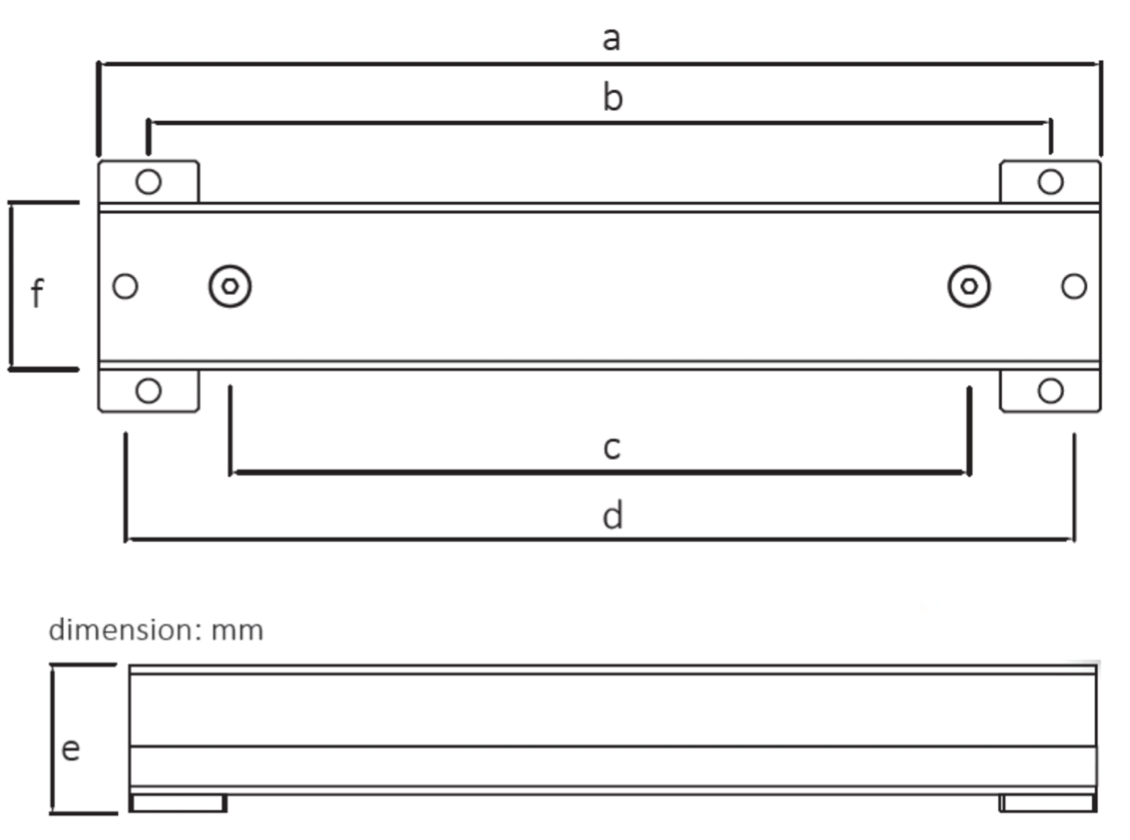

BT Ultra 600mm
- a
- 600
- b
- 540
- c
- 442.4
- d
- 568
- e
- 90.3
- f
- 100
Why a custom-built platform is recommended
- Crushes are all different lengths and widths.
- Crushes have different gates and frame cross-bearer locations.
- The animals' weight is spread evenly, for the best accuracy.
- Safer for your animals and workers: no gaps or humps.
- Less expensive to buy.
- Aluminium is lighter than steel, so the platform is easier to handle.
- Quick and easy for a local engineering company to build.
- No freight bill for a heavy steel platform.
- Supports local businesses and Australian-made products.
Platform construction guide (PDF)
Eight pages with the materials list, construction photographs and load bar drawings, ready to hand to your welder. Questions about platform construction, or which load bars suit your operation? Email info@agrieid.com.
